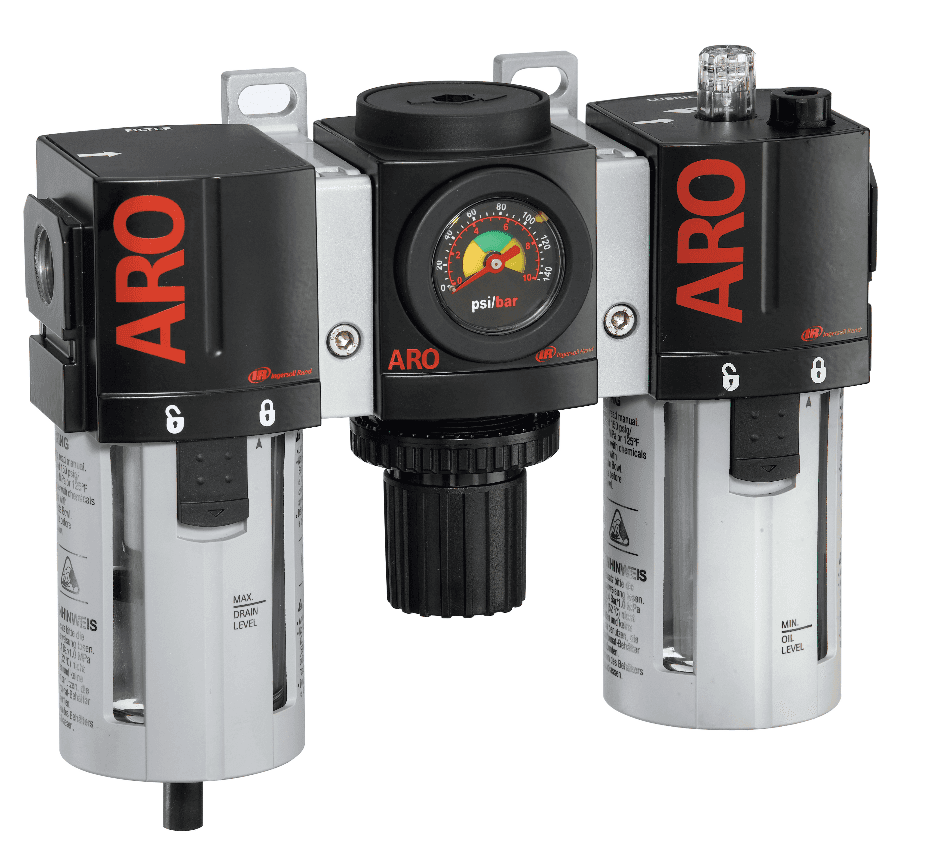

3/4" 3-Piece Combination | ARO-Flo 2000 Series | C38351-800
SKU: C38351-800
3/4" NPT, 3pc F+R+L, 81scfm, 5 micron filter, 10 Max Inlet, poly bowl w/manual drain
SKU: C38351-800
Features
- Includes F35351-400, R37351-600, and L36351-100
- Components preassembled
- Industry leading flow rates
- 5 micron filtration
- Locking bowls for safety
- Polycarbonate filter bowl w/1.9 oz capacity
- Bright, flush mount gauge with settable fan feature
- Compatible with digital gauge
- Oil mist lubricator
- Auto-fill port allows for refill under pressure
- 4.3 oz lubricator bowl capacity
- Adjustable oil flow
- Transparent sight dome
- 2 year warranty
Expected to ship within 10 business days. Order before 4 p.m.
In Stock
$442.00
Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.Materials of Construction
- Filter:
- Bowl: Polycarbonate
- Bowl Guard: Nylon
- Body: Aluminum
- Manual Drain: Steel & Nitrile
- Standard Filter: Polyethylene
- Baffle: Acetal
- Seals: Nitrile
- Regulator:
- Diaphragm: Nitrile & Acetal
- Body: Brass & Nitrile
- Valve: Brass & Nitrile
- Spring: Steel
- Gauge Cover: Nylon & Polycarbonate
- Adjustment Knob: Acetal
- O-rings:Nitrile
- Lubricator:
- Body: Aluminum
- Sight Dome: Nylon
- Inlet Tube: Urethane
- Seals: Nitrile
Spare Parts
- 104316: Replacement Manual Drain
- 104317: 5 Micron Element
- 104320 Poly bowl, manual drain
- 104326: Filter Bowl Service Kit
- 104327: Regulator Service Kit (Relieving)
- 104329: Tamper Kit
- 104533: 0-30 psi Spring
- 104330: 0-60 psi Spring
- 104331: 0-140 psi Spring
- 104334: 0-140 psi Gauge (Flush-mount)
- 104336: Polycarbonate bowl w/ guard
- 104339: Lubricator bowl service kit
- 104470: Sight dome repair kit
Accessories
- 104602-4: Digital Gauge
- 104392-3: 3/8'' NPT Lock-out Valve
- 104392-4: 1/2'' NPT Lock-out Valve
- 104396: Modular Clamp Spacer Kit
- 104398-3: 3/8'' NPT Modular Threaded Pipe Adapter
- 104398-4: 1/2'' NPT Modular Threaded Pipe Adapter
- 104479-2: 1/2" Check Valve w/1/4" port
- 104479-3: 1/2" Check Valve w/3/8" port
- 104401: T-Type Wall Bracket
- 104405: L-Type Wall Bracket
- 104409: C-Type Wall Bracket
- 104413-3-2: 3/8'' x 1/4" Manifold Block
- 104413-3-3: 3/8'' x 3/8" Manifold Block
- 104413-4-2: 1/2'' x 1/4" Manifold Block
- 104413-4-3: 1/2'' x 3/8" Manifold Block
- 104415: Pressure Switch
- 104418: Panel Nut
- 104469: Gauge Port Block
ARO-Flo 1000 Series Combinations
| NPT | Combination | SCFM | Filter Element | Max Inlet | Includes | Model | BUY NOW |
|---|---|---|---|---|---|---|---|
| 1/8" | 2 pc (F/R+L) | 17 | 5 micron | 150 psi | P39114-600 and L36111-100 | C38111-600 | BUY NOW |
| 1/8" | 3 pc (F+R+L) | 16 | 5 micron | 150 psi | F35111-400, R37111-600, and L36111-100 | C38111-800 | BUY NOW |
| 1/4" | 2 pc (F/R+L) | 21 | 5 micron | 150 psi | P39124-600 and L36121-100 | C38121-600 | BUY NOW |
| 1/4" | 2 pc (F/R+L) | 21 | 5 micron | 150 psi | P39124-604 and L36121-100 | C38121-601 | BUY NOW |
| 1/4" | 2 pc (F/R+L) | 21 | 5 micron | 250 psi | P39124-620 and L36121-120 | C38121-620 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 22 | 5 micron | 150 psi | F35121-400, R37121-600, and L36121-100 | C38121-800 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 22 | 5 micron | 150 psi | F35121-401, R37121-600, and L36121-100 | C38121-801 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 22 | 5 micron | 250 psi | F35121-420, R37121-600, and L36121-120 | C38121-820 | BUY NOW |
ARO-Flo 1500 Series Combinations
| NPT | Combination | SCFM | Filter Element | Max Inlet | Includes | Model | BUY NOW |
|---|---|---|---|---|---|---|---|
| 1/4" | 2 pc (F/R+L) | 27 | 5 micron | 150 psi | P39224-600 and L36221-100 | C38221-600 | BUY NOW |
| 1/4" | 2 pc (F/R+L) | 27 | 5 micron | 250 psi | P39224-610 and L36221-110 | C38221-610 | BUY NOW |
| 1/4" | 2 pc (F/R+L) | 27 | 5 micron | 250 psi | P39224-614 and L36221-110 | C38221-611 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 29 | 5 micron | 150 psi | F35221-400, R37221-600, and L36221-100 | C38221-800 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 29 | 5 micron | 150 psi | F35221-401, R37221-600, and L36221-100 | C38221-801 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 29 | 5 micron | 250 psi | F35221-410, R37221-600, and L36221-110 | C38221-810 | BUY NOW |
| 1/4" | 3 pc (F+R+L) | 29 | 5 micron | 250 psi | F35221-411, R37221-600, and L36221-110 | C38221-811 | BUY NOW |
| 3/8" | 2 pc (F/R+L) | 34 | 5 micron | 150 psi | P39234-600 and L36231-100 | C38231-600 | BUY NOW |
| 3/8" | 2 pc (F/R+L) | 34 | 5 micron | 150 psi | P39234-604 and L36231-100 | C38231-601 | BUY NOW |
| 3/8" | 2 pc (F/R+L) | 34 | 5 micron | 250 psi | P39234-610 and L36231-110 | C38231-610 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 40 | 5 micron | 150 psi | F35231-400, R37231-600, and L36231-100 | C38231-800 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 40 | 5 micron | 150 psi | F35231-401, R37231-600, and L36231-100 | C38231-801 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 40 | 5 micron | 250 psi | F35231-410, R37231-600, and L36231-110 | C38231-810 | BUY NOW |
ARO-Flo 2000 Series Combinations
| NPT | Combination | SCFM | Filter Element | Max Inlet | Includes | Model | BUY NOW |
|---|---|---|---|---|---|---|---|
| 3/8" | 2 pc (F/R+L) | 45 | 5 micron | 150 psi | P39334-600 and L36331-100 | C38331-600 | BUY NOW |
| 3/8" | 2 pc (F/R+L) | 45 | 5 micron | 150 psi | P39334-604 and L36331-100 | C38331-601 | BUY NOW |
| 3/8" | 2 pc (F/R+L) | 45 | 5 micron | 250 psi | P39334-610 and L36331-110 | C38331-610 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 47 | 5 micron | 150 psi | F35331-400, R37331-600, and L36331-100 | C38331-800 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 47 | 5 micron | 150 psi | F35331-401, R37331-600, and L36331-100 | C38331-801 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 47 | 5 micron | 250 psi | F35331-410, R37331-600, and L36331-110 | C38331-810 | BUY NOW |
| 3/8" | 3 pc (F+R+L) | 47 | 5 micron | 250 psi | F35331-411, R37331-600, and L36331-110 | C38331-811 | BUY NOW |
| 1/2" | 2 pc (F/R+L) | 57 | 5 micron | 150 psi | P39344-600 and L36341-100 | C38341-600 | BUY NOW |
| 1/2" | 2 pc (F/R+L) | 57 | 5 micron | 150 psi | P39344-604 and L36341-100 | C38341-601 | BUY NOW |
| 1/2" | 2 pc (F/R+L) | 57 | 5 micron | 250 psi | P39344-610 and L36341-110 | C38341-610 | BUY NOW |
| 1/2" | 2 pc (F/R+L) | 57 | 5 micron | 250 psi | P39344-614 and L36341-110 | C38341-611 | BUY NOW |
| 1/2" | 3 pc (F+R+L) | 71 | 5 micron | 150 psi | F35341-400, R37341-600, and L36341-100 | C38341-800 | BUY NOW |
| 1/2" | 3 pc (F+R+L) | 71 | 5 micron | 150 psi | F35341-401, R37341-600, and L36341-100 | C38341-801 | BUY NOW |
| 1/2" | 3 pc (F+R+L) | 71 | 5 micron | 250 psi | F35341-410, R37341-600, and L36341-110 | C38341-810 | BUY NOW |
| 1/2" | 3 pc (F+R+L) | 71 | 5 micron | 250 psi | F35341-411, R37341-600, and L36341-110 | C38341-811 | BUY NOW |
| 3/4" | 2 pc (F/R+L) | 67 | 5 micron | 150 psi | P39354-600 and L36351-100 | C38351-600 | BUY NOW |
| 3/4" | 2 pc (F/R+L) | 67 | 5 micron | 250 psi | P39354-610 and L36351-110 | C38351-610 | BUY NOW |
| 3/4" | 2 pc (F/R+L) | 67 | 5 micron | 250 psi | P39354-614 and L36351-110 | C38351-611 | BUY NOW |
| 3/4" | 3 pc (F+R+L) | 81 | 5 micron | 150 psi | F35351-400, R37351-600, and L36351-100 | C38351-800 | BUY NOW |
| 3/4" | 3 pc (F+R+L) | 81 | 5 micron | 150 psi | F35351-401, R37351-600, and L36351-100 | C38351-801 | BUY NOW |
| 3/4" | 3 pc (F+R+L) | 81 | 5 micron | 250 psi | F35351-410, R37351-600, and L36351-110 | C38351-810 | BUY NOW |
| 3/4" | 3 pc (F+R+L) | 81 | 5 micron | 250 psi | F35351-411, R37351-600, and L36351-110 | C38351-811 | BUY NOW |
ARO-Flo 3000 Series Combinations
| NPT | Combination | SCFM | Filter Element | Max Inlet | Includes | Model | BUY NOW |
|---|---|---|---|---|---|---|---|
| 3/4" | 2 pc (F/R+L) | 95 | 5 micron | 250 psi | P39454-610 and L36451-110 | C38451-610 | BUY NOW |
| 3/4" | 3 pc (F+R+L) | 94 | 5 micron | 250 psi | F35451-410, R37451-600, and L36451-110 | C38451-810 | BUY NOW |
| 3/4" | 3 pc (F+R+L) | 94 | 5 micron | 250 psi | F35451-411, R37451-600, and L36451-110 | C38451-811 | BUY NOW |
| 1" | 2 pc (F/R+L) | 98 | 5 micron | 250 psi | P39464-610 and L36461-110 | C38461-610 | BUY NOW |
| 1" | 3 pc (F+R+L) | 101 | 5 micron | 250 psi | F35461-410, R37461-600, and L36461-110 | C38461-810 | BUY NOW |
| 1" | 3 pc (F+R+L) | 101 | 5 micron | 250 psi | F35461-411, R37461-600, and L36461-110 | C38461-811 | BUY NOW |
