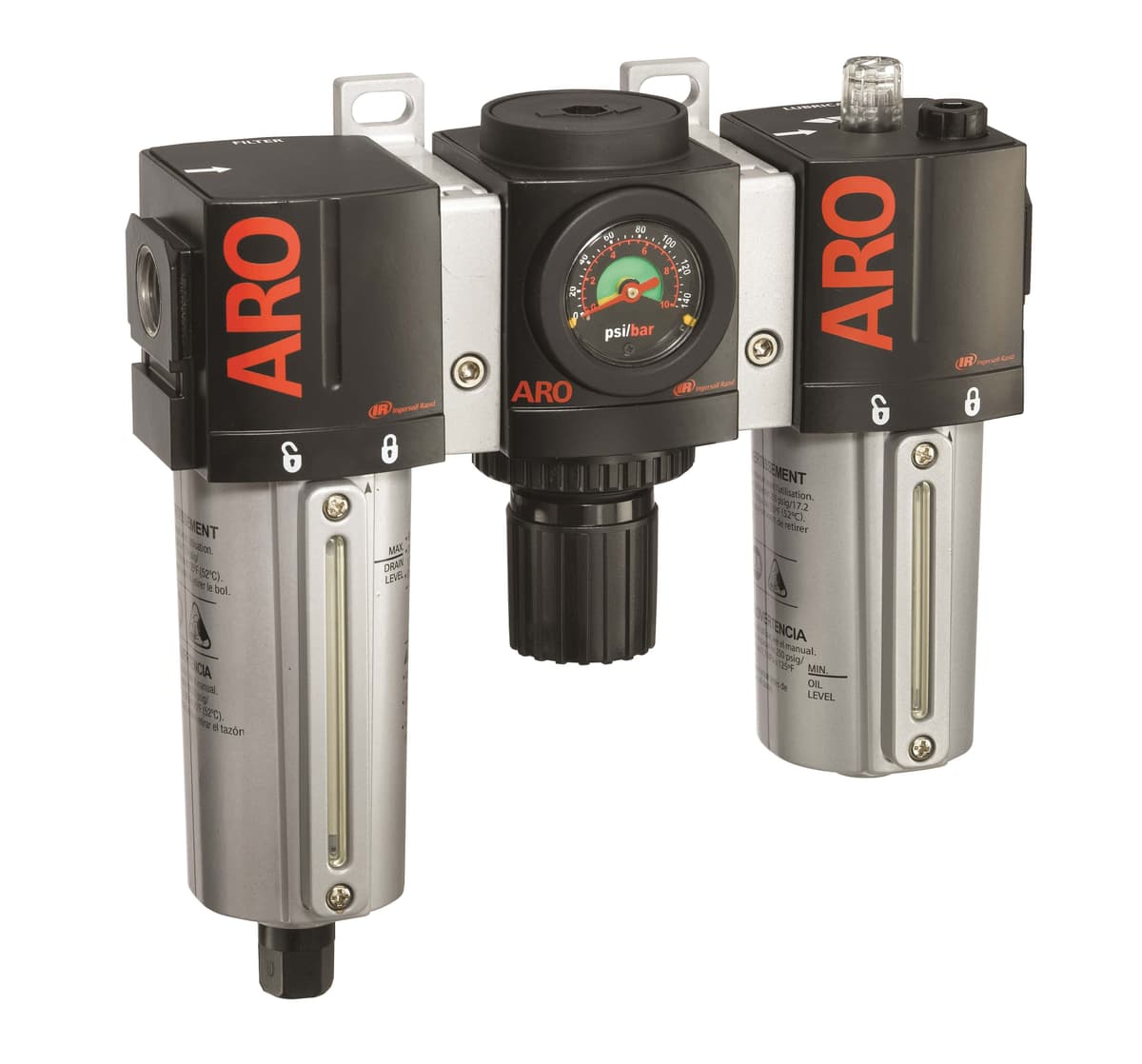

3/8" 3-Piece Combination | ARO-Flo 2000 Series | C38331-811

Art. No.: aro_C38331-811

3/8" NPT, 3pc F+R+L, 47scfm, 5 micron filter, 17.3 Max Inlet, metal bowl w/auto drain

Art. No.: aro_C38331-811

Features

Includes F35331-411, R37331-600, and L36331-110
Components preassembled
Industry leading flow rates
5 micron filtration
Locking bowls for safety
Polycarbonate filter bowl w/2.8 oz capacity
Bright, flush mount gauge with settable fan feature
Compatible with digital gauge
Oil mist lubricator
Auto-fill port allows for refill under pressure
3.7 oz lubricator bowl capacity
Adjustable oil flow
Transparent sight dome
2 year warranty

Expected to ship within 10 business days. Order before 4 p.m.

In Stock

$473.00

Prices for items exclude shipping costs and taxes. Depending on your delivery address, taxes may vary at checkout.

Materials of Construction

Filter:
Bowl: Aluminum
Bowl Sight Glass: Nylon
Body: Aluminum
Automatic Drain:Acetal
Standard Filter: Polyethylene
Baffle: Acetal
Seals: Nitrile
Regulator:
Diaphragm: Nitrile & Acetal
Body: Brass & Nitrile
Valve: Brass & Nitrile
Spring: Steel
Gauge Cover: Nylon & Polycarbonate
Adjustment Knob: Acetal
O-rings:Nitrile
Lubricator:
Body: Aluminum
Sight Dome: Nylon
Inlet Tube: Urethane
Seals: Nitrile

Spare Parts

104315: Replacement Auto Drain
104317: 5 Micron Element
104324 Metal bowl w/sight glass, auto drain
104326: Filter Bowl Service Kit
104327: Regulator Service Kit (Relieving)
104329: Tamper Kit
104533: 0-30 psi Spring
104330: 0-60 psi Spring
104331: 0-140 psi Spring
104334: 0-140 psi Gauge (Flush-mount)
104338: Metal bowl w/sight glass
104339: Lubricator bowl service kit
104470: Sight dome repair kit

Accessories

104602-4: Digital Gauge
104392-3: 3/8'' NPT Lock-out Valve
104392-4: 1/2'' NPT Lock-out Valve
104396: Modular Clamp Spacer Kit
104398-3: 3/8'' NPT Modular Threaded Pipe Adapter
104398-4: 1/2'' NPT Modular Threaded Pipe Adapter
104479-2: 1/2" Check Valve w/1/4" port
104479-3: 1/2" Check Valve w/3/8" port
104401: T-Type Wall Bracket
104405: L-Type Wall Bracket
104409: C-Type Wall Bracket
104413-3-2: 3/8'' x 1/4" Manifold Block
104413-3-3: 3/8'' x 3/8" Manifold Block
104413-4-2: 1/2'' x 1/4" Manifold Block
104413-4-3: 1/2'' x 3/8" Manifold Block
104415: Pressure Switch
104418: Panel Nut
104469: Gauge Port Block

ARO-Flo 1000 Series Combinations

NPT	Combination	SCFM	Filter Element	Max Inlet	Includes	Model	BUY NOW
1/8"	2 pc (F/R+L)	17	5 micron	150 psi	P39114-600 and L36111-100	C38111-600	BUY NOW
1/8"	3 pc (F+R+L)	16	5 micron	150 psi	F35111-400, R37111-600, and L36111-100	C38111-800	BUY NOW
1/4"	2 pc (F/R+L)	21	5 micron	150 psi	P39124-600 and L36121-100	C38121-600	BUY NOW
1/4"	2 pc (F/R+L)	21	5 micron	150 psi	P39124-604 and L36121-100	C38121-601	BUY NOW
1/4"	2 pc (F/R+L)	21	5 micron	250 psi	P39124-620 and L36121-120	C38121-620	BUY NOW
1/4"	3 pc (F+R+L)	22	5 micron	150 psi	F35121-400, R37121-600, and L36121-100	C38121-800	BUY NOW
1/4"	3 pc (F+R+L)	22	5 micron	150 psi	F35121-401, R37121-600, and L36121-100	C38121-801	BUY NOW
1/4"	3 pc (F+R+L)	22	5 micron	250 psi	F35121-420, R37121-600, and L36121-120	C38121-820	BUY NOW

ARO-Flo 1500 Series Combinations

NPT	Combination	SCFM	Filter Element	Max Inlet	Includes	Model	BUY NOW
1/4"	2 pc (F/R+L)	27	5 micron	150 psi	P39224-600 and L36221-100	C38221-600	BUY NOW
1/4"	2 pc (F/R+L)	27	5 micron	250 psi	P39224-610 and L36221-110	C38221-610	BUY NOW
1/4"	2 pc (F/R+L)	27	5 micron	250 psi	P39224-614 and L36221-110	C38221-611	BUY NOW
1/4"	3 pc (F+R+L)	29	5 micron	150 psi	F35221-400, R37221-600, and L36221-100	C38221-800	BUY NOW
1/4"	3 pc (F+R+L)	29	5 micron	150 psi	F35221-401, R37221-600, and L36221-100	C38221-801	BUY NOW
1/4"	3 pc (F+R+L)	29	5 micron	250 psi	F35221-410, R37221-600, and L36221-110	C38221-810	BUY NOW
1/4"	3 pc (F+R+L)	29	5 micron	250 psi	F35221-411, R37221-600, and L36221-110	C38221-811	BUY NOW
3/8"	2 pc (F/R+L)	34	5 micron	150 psi	P39234-600 and L36231-100	C38231-600	BUY NOW
3/8"	2 pc (F/R+L)	34	5 micron	150 psi	P39234-604 and L36231-100	C38231-601	BUY NOW
3/8"	2 pc (F/R+L)	34	5 micron	250 psi	P39234-610 and L36231-110	C38231-610	BUY NOW
3/8"	3 pc (F+R+L)	40	5 micron	150 psi	F35231-400, R37231-600, and L36231-100	C38231-800	BUY NOW
3/8"	3 pc (F+R+L)	40	5 micron	150 psi	F35231-401, R37231-600, and L36231-100	C38231-801	BUY NOW
3/8"	3 pc (F+R+L)	40	5 micron	250 psi	F35231-410, R37231-600, and L36231-110	C38231-810	BUY NOW

ARO-Flo 2000 Series Combinations

NPT	Combination	SCFM	Filter Element	Max Inlet	Includes	Model	BUY NOW
3/8"	2 pc (F/R+L)	45	5 micron	150 psi	P39334-600 and L36331-100	C38331-600	BUY NOW
3/8"	2 pc (F/R+L)	45	5 micron	150 psi	P39334-604 and L36331-100	C38331-601	BUY NOW
3/8"	2 pc (F/R+L)	45	5 micron	250 psi	P39334-610 and L36331-110	C38331-610	BUY NOW
3/8"	3 pc (F+R+L)	47	5 micron	150 psi	F35331-400, R37331-600, and L36331-100	C38331-800	BUY NOW
3/8"	3 pc (F+R+L)	47	5 micron	150 psi	F35331-401, R37331-600, and L36331-100	C38331-801	BUY NOW
3/8"	3 pc (F+R+L)	47	5 micron	250 psi	F35331-410, R37331-600, and L36331-110	C38331-810	BUY NOW
3/8"	3 pc (F+R+L)	47	5 micron	250 psi	F35331-411, R37331-600, and L36331-110	C38331-811	BUY NOW
1/2"	2 pc (F/R+L)	57	5 micron	150 psi	P39344-600 and L36341-100	C38341-600	BUY NOW
1/2"	2 pc (F/R+L)	57	5 micron	150 psi	P39344-604 and L36341-100	C38341-601	BUY NOW
1/2"	2 pc (F/R+L)	57	5 micron	250 psi	P39344-610 and L36341-110	C38341-610	BUY NOW
1/2"	2 pc (F/R+L)	57	5 micron	250 psi	P39344-614 and L36341-110	C38341-611	BUY NOW
1/2"	3 pc (F+R+L)	71	5 micron	150 psi	F35341-400, R37341-600, and L36341-100	C38341-800	BUY NOW
1/2"	3 pc (F+R+L)	71	5 micron	150 psi	F35341-401, R37341-600, and L36341-100	C38341-801	BUY NOW
1/2"	3 pc (F+R+L)	71	5 micron	250 psi	F35341-410, R37341-600, and L36341-110	C38341-810	BUY NOW
1/2"	3 pc (F+R+L)	71	5 micron	250 psi	F35341-411, R37341-600, and L36341-110	C38341-811	BUY NOW
3/4"	2 pc (F/R+L)	67	5 micron	150 psi	P39354-600 and L36351-100	C38351-600	BUY NOW
3/4"	2 pc (F/R+L)	67	5 micron	250 psi	P39354-610 and L36351-110	C38351-610	BUY NOW
3/4"	2 pc (F/R+L)	67	5 micron	250 psi	P39354-614 and L36351-110	C38351-611	BUY NOW
3/4"	3 pc (F+R+L)	81	5 micron	150 psi	F35351-400, R37351-600, and L36351-100	C38351-800	BUY NOW
3/4"	3 pc (F+R+L)	81	5 micron	150 psi	F35351-401, R37351-600, and L36351-100	C38351-801	BUY NOW
3/4"	3 pc (F+R+L)	81	5 micron	250 psi	F35351-410, R37351-600, and L36351-110	C38351-810	BUY NOW
3/4"	3 pc (F+R+L)	81	5 micron	250 psi	F35351-411, R37351-600, and L36351-110	C38351-811	BUY NOW

ARO-Flo 3000 Series Combinations

NPT	Combination	SCFM	Filter Element	Max Inlet	Includes	Model	BUY NOW
3/4"	2 pc (F/R+L)	95	5 micron	250 psi	P39454-610 and L36451-110	C38451-610	BUY NOW
3/4"	3 pc (F+R+L)	94	5 micron	250 psi	F35451-410, R37451-600, and L36451-110	C38451-810	BUY NOW
3/4"	3 pc (F+R+L)	94	5 micron	250 psi	F35451-411, R37451-600, and L36451-110	C38451-811	BUY NOW
1"	2 pc (F/R+L)	98	5 micron	250 psi	P39464-610 and L36461-110	C38461-610	BUY NOW
1"	3 pc (F+R+L)	101	5 micron	250 psi	F35461-410, R37461-600, and L36461-110	C38461-810	BUY NOW
1"	3 pc (F+R+L)	101	5 micron	250 psi	F35461-411, R37461-600, and L36461-110	C38461-811	BUY NOW
